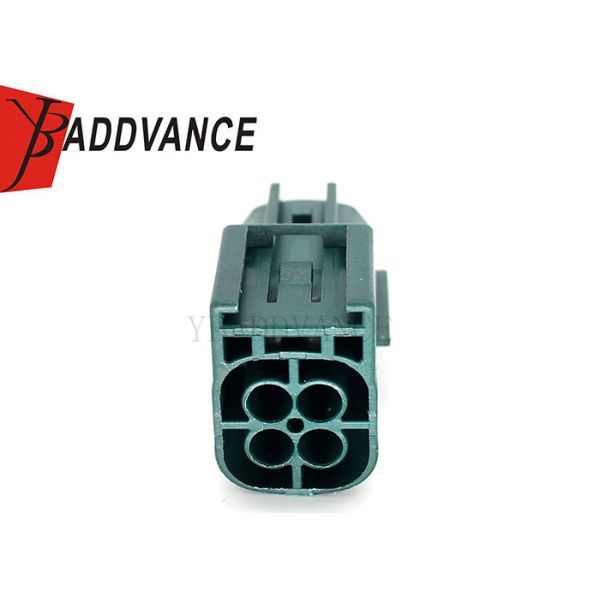

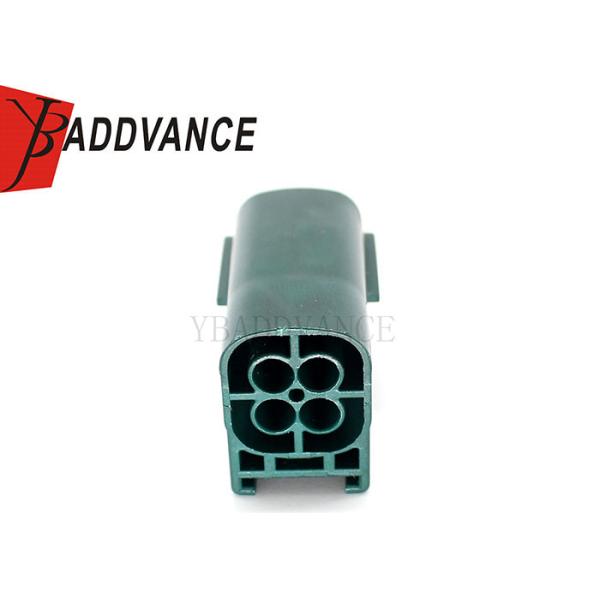

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598

Name: Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 61810513 69181598
Brand: YBADDVANCE
Price: 0.5 USD

Quality Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 for sale

Brand Name : YBADDVANCE

Model Number : 6181-0513

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : USD 0.5-0.7 Per set with crimp terminals

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Sumitomo Number : S6181-0668

Series : Sumitomo RS Series

Material : PBT

Color : Green

Sealed/Unsealed : Sealed

Male/Female : Male

Way : 4 Way

Mating parts : 6189-7756

Leak current : 100μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6181-0668

Product Description

4 Pin sumitomo sealed connectors RS series 2.3mm 090 male connector come with the following accessories kits:

Terminals:

2.3mm 8100-3803
2.3mm 8100-3805
2.3mm 8100-3804
2.3mm 8100-3806

Wire seals:

2.3mm 7165-0474
2.3mm 7165-0473
2.3mm 7165-0472
2.3mm 7165-0471

Connector accessories:

TPA 6918-1598

Specification

Keywords	Sumitomo 4 pin connector
Original Number	6181-0513
Type	Waterproof connector
Male/Female	male
Material	PBT
Series	RS Series 2.3mm(090)
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max.
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 49.0kPa Min. after durability tests 29.4kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Green Color
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598
